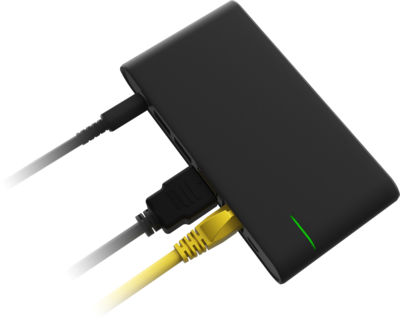

Door Tablet ABX2


Wayfinding Signage - For Common Areas

A compact device for Wayfinding displays in public areas. Enables touch or non-touch multi-resource displays. A must use for the Door Tablet ePaper Controller (see here)

Manufactured by:

Easy to Install
Works “out of the box” with the Door Tablet system. Enables Wayfinding displays, touch or non-touch multi-resource kiosks.  The only device to run the Door Tablet ePaper Controller.
Remote Management
Manage the Door Tablet ABX2 remotely using the Door Tablet Web UI.
Slim, Hardened Design
Fits easily behind all displays, using the supplied velcro fittings. A robust device that will survive knocks and bangs.  Does not require a screen when used for the Door Tablet ePaper Controller, apart from configuration
Wired Ethernet or Wi-Fi
Clean installation via a single cable, with IEEE 802.3 standard. Wi-Fi connectivity also available.
Interactive or Read-Only
Use with the Door Tablet touch and non-touch displays for read-only or interactive Wayfinding.
eMMC Storage
Reliable read/write data settings ensure existing data will not be corrupted when a sudden power loss occurs.
Full HD
HDMI output ensures a crystal-clear display (up to 1920 x 1080 dpi) and clarity of text. Connect to multiple screens using an HDMI splitter.
Environmentally Friendly
May be configured to shut down automatically over nights and weekends to conserve power, helping the environment and saving money.


CPU ARM Quad-Core Cortex A53, 1.5GHz
Memory 2GB DDR4
Storage 32GB
Display orientation Landscape/Portrait
Networking+ Wired and Wi-Fi

Operating Environment

Type Android 10
HDMI Output CEC 3840 x 2160
RTC Supported
Watchdog Timer Supported

I/O Interface

Ethernet 1 x RJ45 (10/100 BASE-T)
USB 1x USB2.0 type A / 1x USB3.0 type A / 1 x Micro USB


Dimensions (WxDxH) 127 x 66 x 18.5mm /
5 x 2.6 x 0.73 (inch)
Weight 60g
Mounting VESA mount kit, 75/75 (mm)
Housing Plastic
Environment Operating Temp. 0~60°C
Storage Temp. -20°C to 70°C
Power DC 5V/2A
Certification CE/FCC/RCM
