Door Tablet SL

available

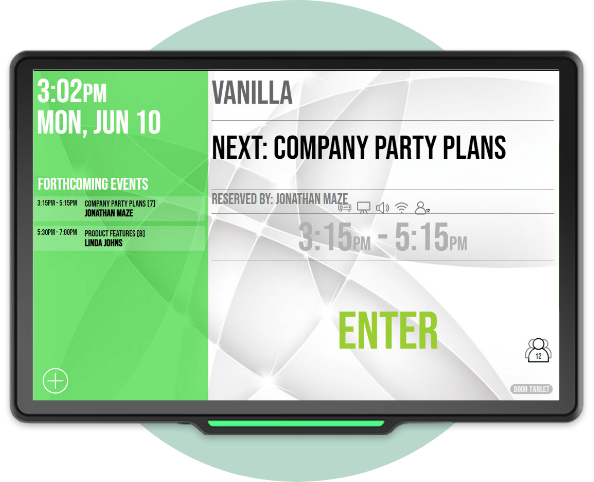

Workspace Signage Touch Display

Our slim, streamlined, purpose-built display is placed outside your meeting spaces

Manufactured by:

Easy to install
Works “out of the box” and comes with all the fixtures and fittings needed. It’s easy to mount on any surface including glass, brick, plaster and metal. The device comes with a security lock, built-in.
Readable at Wide Viewing Angles
The IPS display ensures the screen can be read comfortably at a distance and at wide angles, so there’s no need to get up close to read what’s being displayed.
Sturdy
The screen is tempered glass which means it is tough, easy to clean and will not shatter, crack or deteriorate excessively with time or heavy use. It’s built to last and stay looking good.
Attractive
It is sleek and slim (2.1cm deep) with a 10.1” high resolution (1280 x 800 dpi) full color touchscreen so the display is easy to read and provides smooth interaction. Add your branding and make the device yours.
Power over Ethernet (PoE+) Built-in
With no need to rely on Wi-Fi signals, a single PoE+ cable powers the SL, giving you the important benefit of full power management to save costs and the environment. Shut down and restart screens as needed.
LED Light on Front

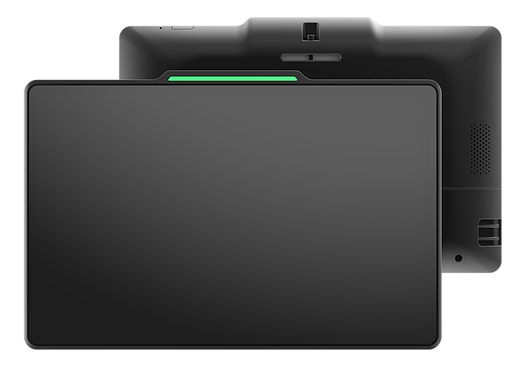

A bright and colorful LED light strip on the front of the Door Tablet SL signals that a room is free or busy and is visible from distance - so there is no need to walk up to a room to see its status. Use the SL with the LED strip at the top or bottom of the device.

Features

CPU ARM quad-core 1.5GHz
Memory 2GB DDR3L
Storage 16GB eMMC
Orientation display Landscape/Portrait
Audio codecs MPEG/OGG/ACC
Colors Black
PoE+ Yes
Wi-Fi Yes

Display

Size 10.1”
Resolution (Max.) 1280 x 800
Brightness 350 nits
Contrast ratio 1000 : 1
Viewing angle (H/V) 170/170

I/O Interface

Ethernet RJ45 (10M/100M)
USB 2x USB2.0 type A
Analog Stereo out 3.5mm stereo
Expansion storage Micro SDHC slot
Speaker 2W x 2

Hardware

Dimensions without stand 248 x 166 x 20.8mm
9.76” x 6.54” x 0.82”
Weight 615g / 1.375 lbs
Mounting Glass / Surface
Housing Plastic
Environment Operating Temp. 0~50°C
Humidity: 10 to 90%
(non-condensing)
Power - Optional DC 12V, 1.5A
Certification CE/FCC/RoHS/NCC/IMDA
