Door Tablet EPS

available

ePaper System for your workspace

Our ePaper devices for desks, meeting rooms and other  spaces. Low cost of deployment and ownership.

VIDEO: Door Tablet EPS Controller

Manufactured by:

Easy to install
Works “out of the box” and comes with all the fixtures and fittings needed. It’s easy to mount on any surface including glass, brick, plaster and metal. No wires required for power and networking.  Each unit is battery powered which may be supplied by us or bought yourself.
Wide Viewing Angles
Like most ePaper devices, our hardware provides a wide angle view. You can see the status and agenda easily.  Busy spaces are shown in red. You may also create a portrate design and control image quality.
Sturdy
The screen is hard despite the fact its made of plastic. The edges provide an elegant yet hard metalic frame with a sophisticated way to fix the units on any surface.  The displays are driven by the Door Tablet ABX2.
Attractive
It is sleek and slim (1.5cm deep) with two sizes to choose from: The Door Table EP4, a 4" display, and the Door Tablet EP7, a 7.5" display. You may also format the display and change its layout as you wish.
Frictionless Deployment
No need for any cables for networking or power.  The displays connect to the Door Tablet EPS controller, running on the Door Tablet ABX2 using Bluetooth 5 technology. Batteries needed: EP4 4xCR2450, EP7 6xCR2450.
Three Colours
Our ePaper displays show data using a clear Black and White presentation coupled with red "ink" to indicate a current busy state.  You can decide the layout and when the "red" is shown.

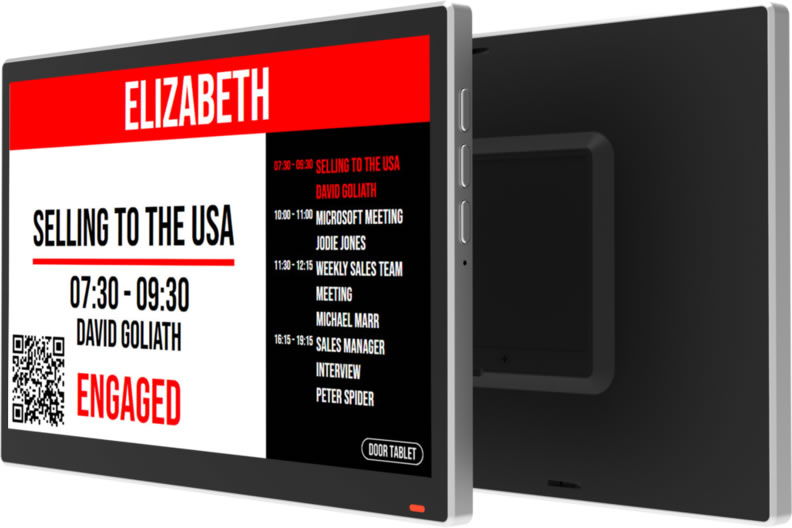

Door Tablet EP7

Size 7.5"
Resolution 800 x 480
Colors Black, White, Red
Orientation display Landscape/Portrait *
Colors Black
Frame Silver
Protocol Bluetooth 5

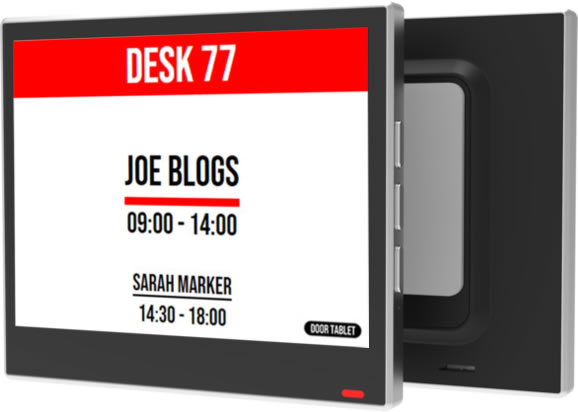

Door Tablet EP4

Size 4”
Resolution 400 x 300
Colors Black, White, Red
Orientation display Landscape/Portrait *
Colors Black
Frame Silver
Protocol Bluetooth 5

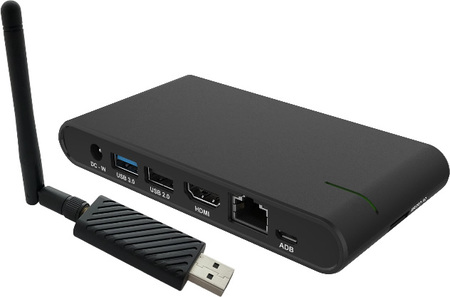

Door Tablet ABX2 (see more)

CPU ARM Quad-Core Cortex A53, 1.5GHz
Comms Dongle Bluetooth 5
Memory 2GB DDR4
Storage 32GB
Power DC 5V/2A
Certification CE/FCC/RCM
Dimensions (WxDxH) 127 x 66 x 18.5mm /
5 x 2.6 x 0.73 (inch)
Networking+ Wired and Wi-Fi
