Door Tablet DVX-SLB
available
Workspace Signage Touch Display
Our slim, streamlined, purpose-built display is placed outside your meeting spaces
Manufactured by:
Easy to install
Works “out of the box” and comes with all the fixtures and fittings needed. It’s easy to mount on any surface including glass, brick, plaster and metal. The device comes with a security lock, built-in.
Wide Viewing Angles
The IPS display ensures the screen can be read comfortably at a distance and at wide angles, so there’s no need to get up close to read what’s being displayed.
Sturdy
The screen is Antimicrobial Corning® Gorilla® Glass glass which means it is tough, easy to clean and will not shatter, crack or deteriorate excessively with time or heavy use. It’s built to last and stay looking good.
Attractive
It is sleek (3cm deep) with a 10.1” high resolution (1280 x 800 dpi) full color touchscreen so the display is easy to read and provides smooth interaction. Add your branding and make the device yours.
Power over Ethernet (PoE+) Built-in
With no need to rely on Wi-Fi signals, a single PoE+ cable powers the DVX-SLB, giving you the important benefit of full power management to save costs and the environment. Shut down and restart screens as needed.

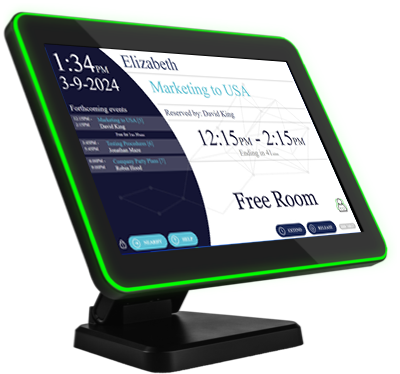

Surround LED Bar
A bright and colorful LED bar surrounds the Door Tablet DVX-SLB. This signals room status and is visible from a distance - so there is no need to walk up to a room to see its status.
Features
CPU |
RK3568 |
Memory |
4GB DDR4 SDRAM |
Storage |
16GB eMMC Flash |
Orientation display |
Landscape/Portrait |
Audio codecs |
AAC,ASF,MP2,OGG,WAV,WMA |
Colors |
Black or White |
PoE+ |
PoE+ (IEEE 802.3at) |
Wi-Fi |
Yes |
NFC |
Optional via PoGo & USB |
Display
Size |
10.1” |
Resolution (Max.) |
1280 x 800 |
Brightness |
500 cd/m2 |
Contrast ratio |
800 : 1 |
Viewing angle (H/V) |
H160/V160 |
I/O Interface
Ethernet |
RJ45 (10M/100M/1000M) |
USB |
1 x USB2.0 type A/ 1 x USB type Micro (w/ ADB) |
Analog Stereo out |
1 x 3.5mm stereo (MIC-in & Audio-out) |
Speaker |
2W x 2 |
Hardware
Dimensions without stand |
255.3 x 181x 26.7 mm |
Camera |
Via PoGo & USB |

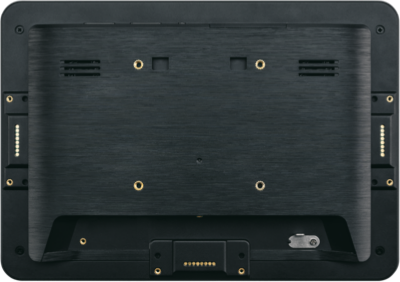

Mounting |
VESA 75 |
Housing |
ABS+PC |
Environment |
Operating Temp. 0~40°C |
Power Adaptor |
Optional |
Certification |
UKCA/CE/FCC/RoHS/REACH |
