Door Tablet CIR
available
Workplace Signage Touch Display

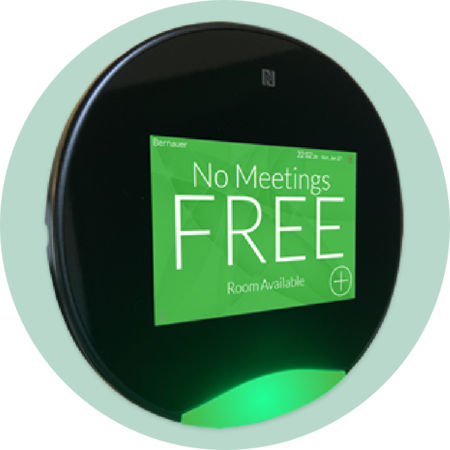

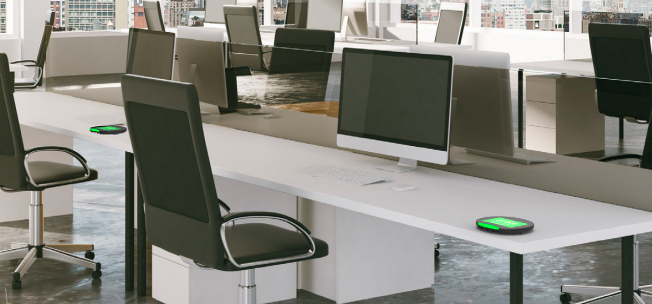

Our unique 12cm diameter disk-shaped touchscreen device sits on a desk or is easily mounted on any surface
Manufactured by:
Touchscreen Simplicity
A 3.5” rectangular touchscreen on the disk displays a streamlined version of our standard layout giving you all the great interactive booking features of Door Tablet.
Crescent LED Display
Warm, bright LEDs illuminate the lower crescent segment to show status at a distance - instantly see if a workspace is booked from across a room or corridor.
RFID/NFC Integration
Simply tap in and out of bookings. Immediate on-device booking. Set security and access levels. Audit meeting attendance and workspace use
Two Interactive Layouts

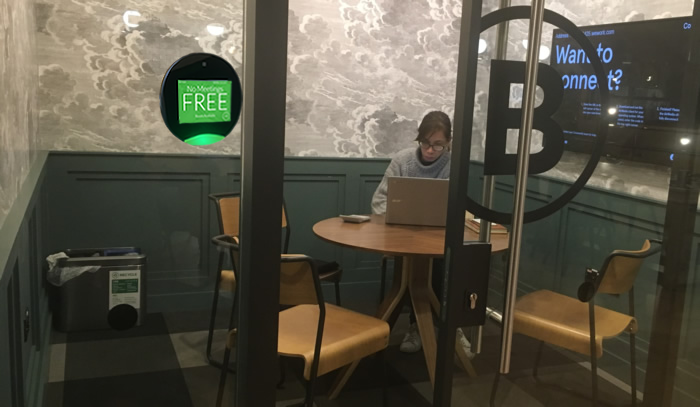

Choose a layout that best suits the workspace (solo or multi-user) and swap between them - integration with motion sensors allows the CIR to signal that a workspace is in use.
Features & Benefits
- Full Booking Functions: instant booking, check-in and check-out, extend or terminate bookings
- Easy to Install: works “out of the box”, mounts securely on most surfaces; water resistant and tamper proof
- Wi-Fi Connectivity: remote management using the Door Tablet Web UI (including OS and App updates); continuous updating of workspace status
- 5V Power Supply: no need to ever open the device to change a battery. Bluetooth enabled for full connectivity
- 3.5” Touchscreen Display: sleek and elegant. LED crescent segment to show workspace status at a distance
- Integration with Motion Sensors: automatically signals if workspaces are occupied via the LED crescent segment and on the screen
- RFID/NFC Card Reader: fast and easy check-in, extend meeting, check-out. Set security and access levels. Audit meeting attendance

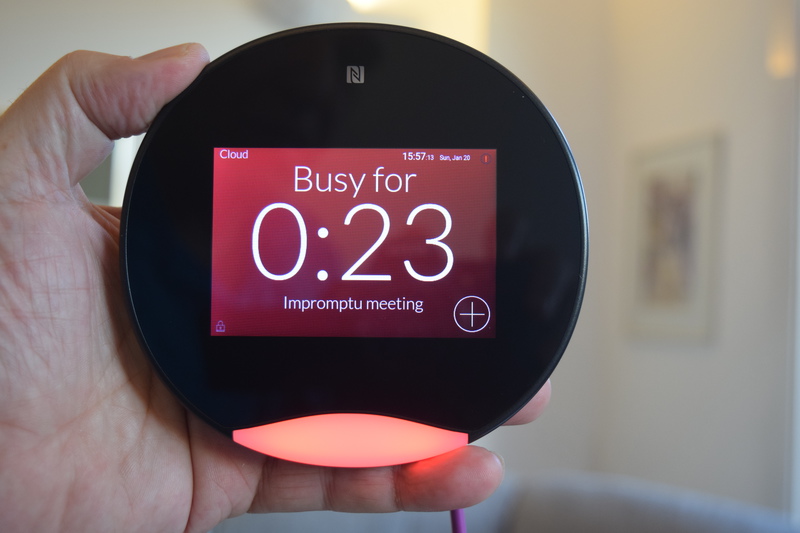

- Numerical (NU) Layout: for workspaces with two or more users at a time. Shows numerical countdowns in both directions - how long the workspace will be busy for or how long it will be available

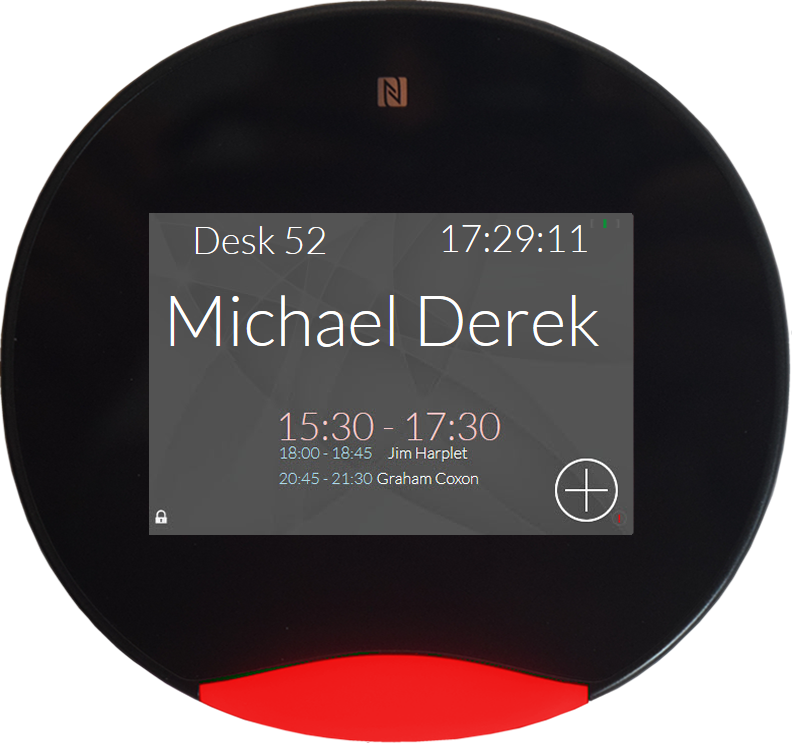

- Desk (DSK) Layout: for workspaces with a solo user. Shows name of user, time and duration of the booking (if booked in advance)
- Sleep Options Available: save money, power and the environment when the Door Tablet CIR is not in use
Specifications
Processor |
ARM Quad-core 1.6GHz |
OS |
Android 5.1 |
Display |
3.5”, 480x320, multi-touch |
RFID |
13.56MHz and 125KHz
+ HID option |
Wi-Fi |
WLAN 802.11 b/g/n, 2.4GHz |
Micro USB IO ports |
1 x Power-in
1 x ADB/OTG
1 x Host sensor |
Dimension |
122mm x 116mm x 13mm |
Operating Temp. |
0~50°C |
Certificate |
CE/FCC/RoHS |
Motion Sensor |
Integration Enabled |
Bluetooth |
Enabled |
